pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm
2/2-way solenoid valve series 21W, 21WA -
pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm
2/2-way solenoid valve series 21W-MR -
pilot-operated; relief valve for compressors; body brass; stainless steel tube with soldered hexagon made of brass; seal PTFE/FKM; medium temperature -10...+120°C; connector size 32mm
2/2-way solenoid valve series 21PW -
pilot-operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm
2/2-way solenoid valve series 21X -
pilot-operated; NO; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm
2/2-way solenoid valve series 21W, 21WA -
pilot-operated; NC; piston type; body brass; tube stainless steel one-piece; seal fibre-glass-reinforced PTFE; medium temperature -40...+180°C; standard coil BDV; connector size 32mm
2/2-way solenoid valve series SL012 -
pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm

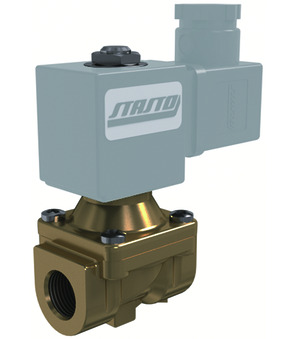

2/2-way solenoid valve series SL200, 21H
|
2/2-way solenoid valve series SL200, 21Hpilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm |
| female thread | DN | length | connector size | pressure AC | pressure DC | seal | medium temperature | type | price | |
|---|---|---|---|---|---|---|---|---|---|---|
| G 1/2" | 12 mm | 50 mm | 32mm | 0,1...20 bar | 0,1...10 bar | NBR | -10...+90 °C | SL200-12 |
60.89 €
|
|
| G 3/8" | 12 mm | 50 mm | 32mm | 0,1...20 bar | 0,1...10 bar | NBR | -10...+90 °C | SL200-38 |
60.89 €
|
|
| G 3/4" | 18 mm | 65 mm | 32mm | 0,1...16 bar | 21H9KB180 |
75.25 €
|
